Since 1977 Wittur supplies the lift industry with versatile and high-quality doors.
Since 1977 Wittur has been providing the lift industry with versatile and high-quality doors. More than 30 years later Wittur is the leading company in the lift doors segment, with state-of-the-art technical solutions and unparalleled product range. Regardless of whatever your lift requires - a round door with panoramic panels rather than a straight or a folding one - Wittur can supply the best solution for your needs.
Research for innovative solutions and rigid control of product quality are key features of Wittur Safeties.
Wittur offers a wide range of car and counterweight frames. Modularly conceived, these components are very flexible in terms of rated load, height and width. The wide range of accessories includes safety gears, suspension pulleys, compensation chain and travelling cable hangers, allowing configurations suitable for different shaft layouts, lift designs and rated speeds. Wittur can also supply special frames for tailored projects.
Research for innovative solutions and rigid product quality control are key features of Wittur Safeties.
According to EN81-1/2 A3 and EN81-21 A1 (new lifts in existing buildings), new lifts installed after January 1st 2012 must be equipped with a system to prevent a car moving away from the floor with the landing door not in the locked position and the car door not in the closed position.
Since 1977 Wittur supplies the lift industry with versatile and high-quality doors..jpg)
Since 1977 Wittur supplies the lift industry with versatile and high-quality doors.
Since 1977 Wittur supplies the lift industry with versatile and high-quality doors.

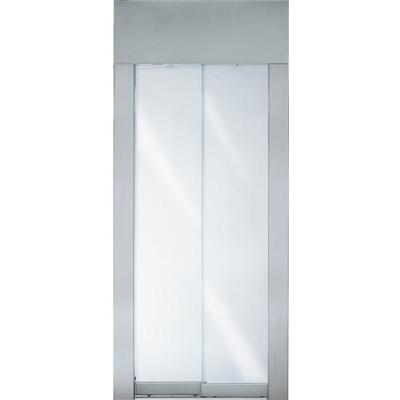

Glass panels doors
Glass panels doors give any installation a distinctive style; they are perfect for a panoramic lift installation, but can also offer more openness and light to a closed shaft lift.
The current standard allow you the utilisation of new solutions representing the maximum as far as safety, design and elegance concerns matching innovation and cost saving.
The doors are supplied in any kind of configuration and are available in two, three, four and six panels.
The current standard allow you the utilisation of new solutions representing the maximum as far as safety, design and elegance concerns matching innovation and cost saving.
The doors are supplied in any kind of configuration and are available in two, three, four and six panels.
READ MORE

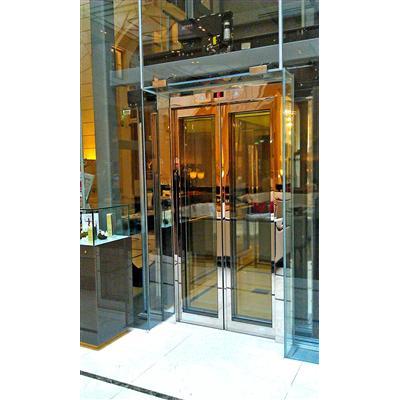

Glass-framed panels door
Glass-framed panels doors may restore with class any installation, from the panoramic one to the installations with closed shaft.
The current standard allow you the utilisation of new solutions representing the maximum as far as safety, design and elegance concerns matching innovation and cost saving.
The doors are supplied in any kind of configuration and are available in two, three, four and six panels.
Furthermore, Hydra and Pegasus framed glass landing doors may be certified anti-vandal according to European standards EN81-71: 2005.
Technical features:
- Frames dimensions mm 120 x 120 x 222
- Glasses flush with the surface of the frames, pre-arranged for stratified glass with thickness of 12,76 mm
- Safety profiles compliant with EN81-1/2
- Re-closing system with counterweight
READ MORE
Norms EN81-58 - Class "E" and further norms

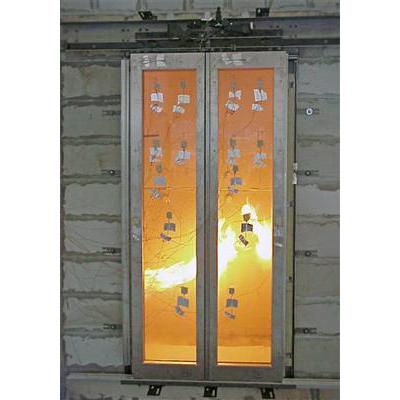

Fire resistant glass-framed panel door
Thank to the Engineering Office research, Wittur offers a good many fire resistant landing doors certifications according to EN81-58 standard.
Glass-framed fire resistant besides having all fire resistance features for the fire rated doors, are provided with the same aesthetic characteristics of the traditional glass-framed doors enabling solutions at safety top level, innovation and design.
Furthermore, Hydra and Pegasus fire resistant framed glass panel doors may be certified anti-vandal according to European standards EN81-71: 2005.
READ MORE

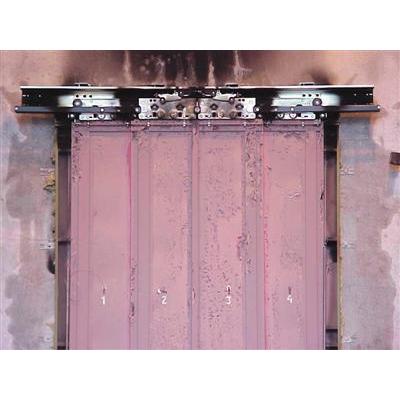

EN81-58 Norms
E Class Fire resistant Doors
The fire resistant lift landing doors are the most diffused in Europe and in the world.
Their essential feature is to satisfy the fire resistance requirements of the fireproof rules for the buildings.
In 2003, after the introduction of the new norms EN81-58, in Europe it was found a meeting point on the type of tests to be applied to the prototypes of landing door.
This has allowed to eliminate the differences in specifications of doors determined by local fire authorities, which are generally different from country to country.
Three classes of resistance are available:
- Class "E" (fire resistant doors)
- Class "EW" (fire resistant doors with limited irradiation)
- Class "EI" (fire-cutting doors)
Compared to the old tests, the fire resistant doors class "E" have the following features:
- Sheet 15/10 thickness instead of 18/10
- Possible execution without thermo-expanding gaskets
- Possible execution without top and rabbet side labyrinth
Furthermore, Hydra and Pegasus doors in fire resistant execution class "E" may be certified anti-vandal according to European standards EN81-71: 2005.
READ MORE
Norms EN81-58
"EW" Class Fire resistant door
The fire resistant lift landing doors are the most diffused in Europe and in the world.
Their essential feature is to satisfy the fire resistance requirements of the fireproof rules for the buildings.
In 2003, after the introduction of the new norms EN81-58 in Europe, it was found a meeting point on the type of tests to be applied to the prototypes of landing door.
This has allowed to eliminate the differences in specifications of doors determined by local fire authorities, which are generally different from country to country.
Three classes of resistance are available:
- Class "E" (fire resistant doors)
- Class "EW" (fire resistant doors with limited irradiation)
- Class "EI" (fire-cutting doors)
Fire resistant doors class "EW" is a new certification. They have the following features:
- Sheet 15/10 thickness
- Possible execution without thermo-expanding gaskets
- Possible execution without top and rabbet side labyrinth
- Doors always in cladded execution (it's necessary a double coat both in case of covering in stainless steel and mild steel)
Furthermore, Hydra and Pegasus doors in fire resistant execution class "EW" may be certified anti-vandal according to European standards EN81-71: 2005.
READ MORE
EN81-58 Norms
"EI" Class Fire resistant Doors
The fire resistant lift landing doors are the most diffused in Europe and in the world.
Their essential feature is to satisfy the fire resistance requirements of the fireproof rules for the buildings.
In 2003, after the introduction of the new norms EN81-58 in Europe it was found a meeting point on the type of tests to be applied to the prototypes of landing door.
This has allowed to eliminate the differences in specifications of doors determined by local fire authorities, which are generally different from country to country.
Three classes of resistance are available:
- Class "E" (fire resistant doors)
- Class "EW" (fire resistant doors with limited irradiation)
- Class "EI" (fire-cutting doors)
Compared to the old tests, the fire resistant doors class "E" have the following features:
- Sheet 15/10 thickness instead of 18/10
- Possible execution without insulation material in the frames
- Possible execution without top and rabbet side labyrinth
- Possible execution without thermo-expanding gaskets
- Possible execution with visible frames
Furthermore, Hydra and Pegasus doors in fire resistant execution class "E" may be certified anti-vandal according to European standards EN81-71: 2005.
READ MORE
Door according to DIN 18091 norms
The fire resistant landing doors according to DIN 18091 standard are mainly produced for the German market and for all the countries where these standards are accepted.
Indipendentently from the series and type of the doorset, are certified landing doors having a maximum clear opening and height dimensions of 2500 mm and contemporarily being fitted in a wall opening not exceeding 2800 mm as maximum width and 2650 mm as maximum height.
Main technical features:
- Panel is always double-plated
- Top frame is always double-plated
- Side frames must be double-plated only in case of width exceeding 150 mm
- Panels with glass window (feasible dimensions of the void are 100x600 mm and 100x300 mm, with wired or trasparent glass type, glass not flush, minimum 6 mm thickness)
- Glass panel and glass-framed panel are not available
- Panels and frames in load-bearing stainless steel (on request)
- Tubular frames (on request)
- Frames flush with the floor (on request)
- Side frames and top frame with variable dimensions (depth from 20 to 80 mm)
READ MORE
Angular or tubular frames
Special frames
These particular types of frames are designed to simplify the modernization of existing lifts.
Their shape allows them to be installed in narrow spaces or to be hidden by architectural decorations.
Furthermore, their application on existing shafts is easier, since they can be fastened with standard screw anchors only.
READ MORE

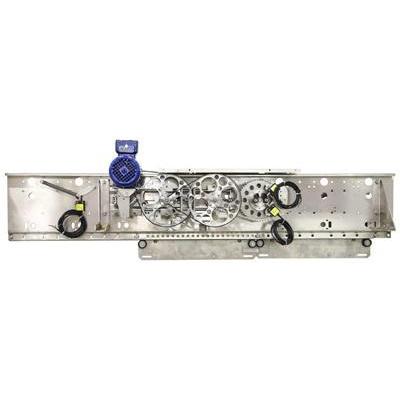

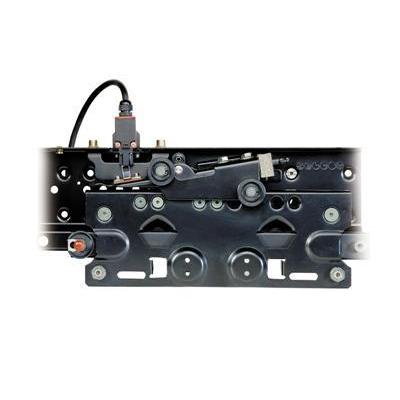

Explosionproof installations
A mechanism or operator in explosionproof execution is able to avoid the triggering of sparks, according to 1127:1997 standards.
In case of explosionproof installations, normally installed in difficult environments, mechanism, operator and electrical components are available in special executions to ensure their functioning and their working life.
READ MORE
IP54 installations
The installations in IP54 execution are the ideal solutions in case of exposure to humidity, to the inclemency of the weather and to other environmental conditions particularly difficult (for example proximity to the sea or in the presence of highly corrosive agents).
The particular environmental conditions make it necessary to use all the components in stainless steel, beginning from the hanger.
So, as well as provide resistance to the explosion, you get additional protection to corrosion.
The particular environmental conditions make it necessary to use all the components in stainless steel, beginning from the hanger.
So, as well as provide resistance to the explosion, you get additional protection to corrosion.
The components not feasible in stainless steel will be painted with polyester powder for outdoor RAL.
The lock will be in IP54 execution thank to the application of a safety contact on the standard lock. This allows you to remove all the seals subjected to aging.
The lock will be in IP54 execution thank to the application of a safety contact on the standard lock. This allows you to remove all the seals subjected to aging.
READ MORE
EN81-71:2005 standards
Vandal resistant certification doors
Wittur group has completed the vandal-resistant certification category 1 for its HYDRA and PEGASUS range of landing and car door types according to the European standard EN81-71:2005.
The growing demand of protection of lifts in unguarded public areas against acts of vandalism has lead CEN (European Committee for Standardization) to issue the harmonized norm, which defines the testing methodology and the classification of lifts in terms of vandal-resistance. Category 1 vandal-resistant doors are manufactured in reinforced execution in order to withstand moderate acts of vandalism, carried out according to modes and with instruments as indicated in the annexes of the EN81-71.
Wittur scope of supply for HYDRA and PEGASUS range of vandal-resistant certified doors is now very wide. Car doors are available both in standard and glass-framed executions. Landing doors are available in a further range of executions, including fire-rated, insulated fire-rated and fire-rated with glass-framed panels according to EN81-58 standard.
Vandal-resistant car and landing doors in standard execution are available in all common cladding types, as well as in IP54 or IP67 protection degree and in explosion proof version (ATEX).
Vandal-resistant landing doors in fire-rated Exxx, Ewxx class according to EN81-58 are available with steelworks in mild or full stainless steel, as well as in IP54 or IP67 protection degree and in explosion proof version (ATEX).
Vandal-resistant landing doors in fire-rated EIxxx class according to EN 81-58 are available in standard, IP54 or IP67 protection degree and in explosion proof version (ATEX).
Vandal-resistant landing and car doors with glass-framed panels are available in standard, IP54 or IP67 protection degree.
Vandal-resistant landing doors in fire-rated execution with glass-framed panels according to EN81-58 are available in standard, IP54 or IP67 protection degree and in explosion proof version (ATEX).
The new Wittur vandal-resistant certified doors are being added to the most extensive range of certifications for car and landing doors in the whole lift industry.
This new complete range of doors will be available starting from June, 2009.
READ MORE

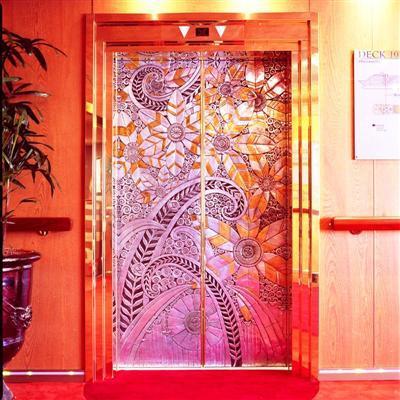

Doors for Marine applications
Thanks to its experience in the design of special solutions, Wittur, for more than 20 years has been supplying doors for Marine applications. These doors combine technological research with aesthetics with an high level of customization.
Ship doors are designed and severely tested to work also in extreme environments such as pitch and roll of the ship, according both to MED directive (Marine Equipment Directive) and IMO (International Marine Organization) ones.
Some door models and configurations are available also with a specific fire resistance certification A0 and A60.
Ship doors are designed and severely tested to work also in extreme environments such as pitch and roll of the ship, according both to MED directive (Marine Equipment Directive) and IMO (International Marine Organization) ones.
Some door models and configurations are available also with a specific fire resistance certification A0 and A60.
READ MORE

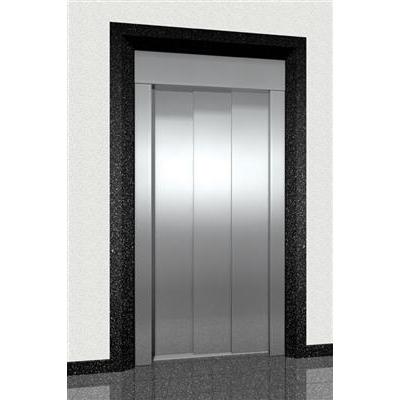

Standard doors
Wittur realizes a wide range of doors in standard execution supplying ideal solutions for each and every market requirement.
Every standard execution consists of a complete automatic door system including:
Every standard execution consists of a complete automatic door system including:
- panels and frames in prime finish RAL 7032
- mechanism complying with EN81-1/2
- standard aluminium sill
- toe-guard
- fixing brackets
- retractable cams
- PMSM motorization
READ MORE
Firefighters elevator doors according to EN81-72:2003
Wittur R&D activity is constantly focused in developing solutions for Safety.
A Firefighter Elevator is a system that, in standard conditions, is used by passengers, while, in event of fire, it is used by Firefighters who can change its operating mode thanks to special controllers. The elevator has to be equipped with peculiar signs and protective devices and has to work in extreme conditions as described in the norm EN81-72:2003.
Wittur supplies a wide range of doors suitable to be used in Firefighters Elevators according to the norm EN81-72:2003.
The main features are:
A Firefighter Elevator is a system that, in standard conditions, is used by passengers, while, in event of fire, it is used by Firefighters who can change its operating mode thanks to special controllers. The elevator has to be equipped with peculiar signs and protective devices and has to work in extreme conditions as described in the norm EN81-72:2003.
Wittur supplies a wide range of doors suitable to be used in Firefighters Elevators according to the norm EN81-72:2003.
The main features are:
- all finishes and executions available in the catalogue
- landing door clear opening not smaller than 800 mm
- mechanism with waterproof wiring and IP54 protection for electrical contacts and landing operating and indicator panels
- label above each mechanism, next to the door lock, with a diagram to explain how to unlock the landing door
- car door clear opening not smaller than 800 mm
- car door operator with IP54 protection for door drives and electrical components
READ MORE

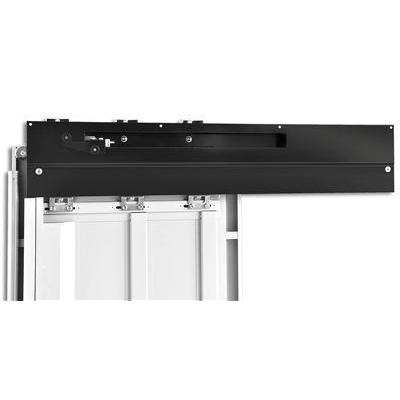

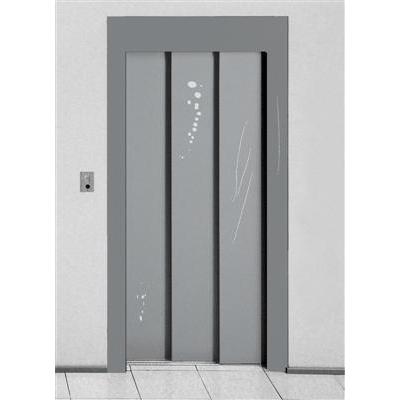

Vandal resistant EN81-71 category 2 elevator doors
Wittur Pegasus range of landing and car door types are available with full compliance to the vandal-resistant certification category 2 according to EN81-71 European standard.
This execution not only fulfills the requirements of EN81-1/2 but also includes additional features that further improve safety compared with EN81-71 category 1.
The main features according to EN81-71 category 2 are:
The major applications include installations in scarcely attended public areas, social housing projects, shopping centres and sport facilities.
Wittur vandal resistant elevator doors are available also in EN81-58 E120 and EW60 fire rated execution.
For additional information about available door types and dimensions please refer to the sales brochure.
This execution not only fulfills the requirements of EN81-1/2 but also includes additional features that further improve safety compared with EN81-71 category 1.
The main features according to EN81-71 category 2 are:
- mechanism housed in a protection box
- an extra thick mechanism plate that accounts for higher rigidity
- car door contact enclosed in a tamper-preventing box
- labyrinth on panels
- shoes in special execution to offer extended resistance against removal of door panels
- holding brackets to keep door trucks on their course even when panels receive severe blows
- door re-closing system pulley inaccessible from the lift entrance
- redundant protection device for all landing door emergency opening keys that cannot be operated unless the protection device is turned off from the main lift controller
- re-enforced door panels with slanted tamper-preventing back profile at door closing side
The major applications include installations in scarcely attended public areas, social housing projects, shopping centres and sport facilities.
Wittur vandal resistant elevator doors are available also in EN81-58 E120 and EW60 fire rated execution.
For additional information about available door types and dimensions please refer to the sales brochure.
READ MORE
