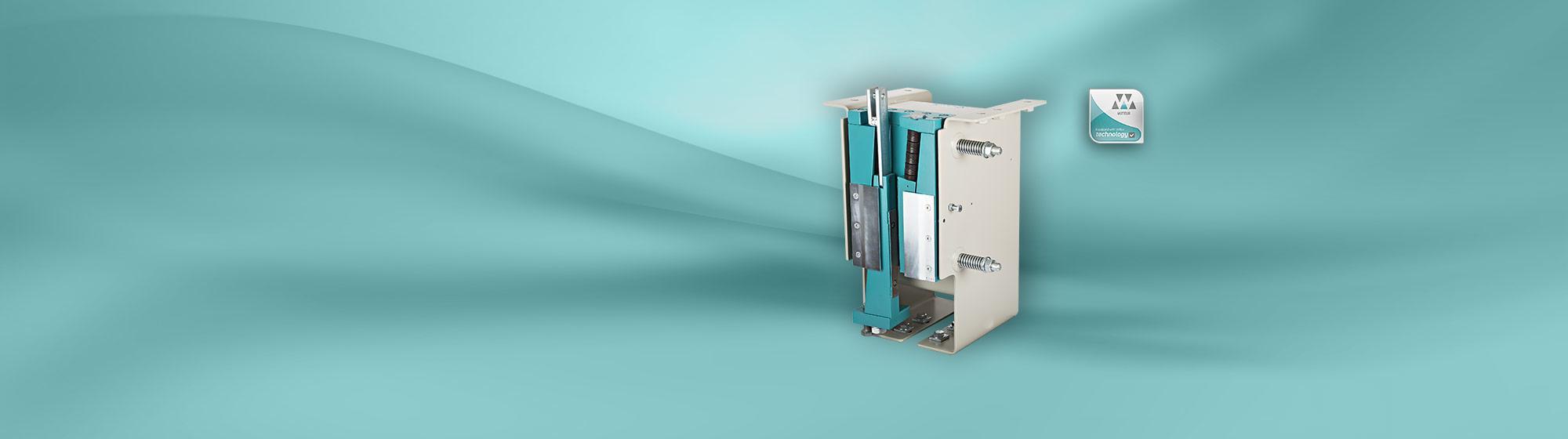

Unidirectional progressive safety gear for high speed

Unidirectional progressive safety gear for high speed

WSGB 04/10

Safety gear acting in downward direction
Constant brake force generated by preloaded disk springs
Steady deceleration along whole braking distance
Designed to avoid wearing marks to guide rail
Several options for different applications are available

Technical Features

TYPE	WSGB04	WSGB10
Max. nominal speed	v = 6,00 m/s	v = 8,00 m/s
Max. tripping speed	Vmax = 7,54 m/s	Vmax = 10,50 m/s
Applicable widths of rail head (type: machined/not lubricated)
- Simplex	k = 16 mm / 19 mm	k = 16 mm / 19 mm
- Duplex	k = 19 mm	k = 19 mm
Min. width of guide rail running surface	n = 30 mm	n = 30 mm
Max. mass to be gripped (P+Q):
- Simplex	Fmax = 1500 - 5000 kg	Fmax = 1500 - 5000 kg
- Duplex	Fmax = 9500 kg	Fmax = 9500 kg
Approved according to	European Lift Directive 95/16/EC	European Lift Directive 95/16/EC
Applicable standards	European Standard EN81	European Standard EN81
