Since 1977 Wittur supplies the lift industry with versatile and high-quality doors.
Since 1977 Wittur has been providing the lift industry with versatile and high-quality doors. More than 30 years later Wittur is the leading company in the lift doors segment, with state-of-the-art technical solutions and unparalleled product range. Regardless of whatever your lift requires - a round door with panoramic panels rather than a straight or a folding one - Wittur can supply the best solution for your needs.
Wittur offers a wide range of car and counterweight frames. Modularly conceived, these components are very flexible in terms of rated load, height and width. The wide range of accessories includes safety gears, suspension pulleys, compensation chain and travelling cable hangers, allowing configurations suitable for different shaft layouts, lift designs and rated speeds. Wittur can also supply special frames for tailored projects.
Research for innovative solutions and rigid product quality control are key features of Wittur Safeties.
According to EN81-1/2 A3 and EN81-21 A1 (new lifts in existing buildings), new lifts installed after January 1st 2012 must be equipped with a system to prevent a car moving away from the floor with the landing door not in the locked position and the car door not in the closed position.
Since 1977 Wittur supplies the lift industry with versatile and high-quality doors..jpg)
Since 1977 Wittur supplies the lift industry with versatile and high-quality doors.
Since 1977 Wittur supplies the lift industry with versatile and high-quality doors.
Research for innovative solutions and rigid control of product quality are key features of Wittur Safeties.
Wittur overspeed governors can cover a broad range of rated loads and speeds and can be applied both to machine roomless and traditional installations.
Our overspeed governors can be engaged at any point along perimeter of pulley and assure high life time due to limited pulley wear.
Wittur overspeed governors can cover a broad range of rated loads and speeds and can be applied both to machine roomless and traditional installations.
Our overspeed governors can be engaged at any point along perimeter of pulley and assure high life time due to limited pulley wear.
Wittur Electronic Overspeed Governor
EOS
With the EOS you are welcomed to the 21st century with a state-of-the-art electronic overspeed detection technology.
Thanks to the sophisticated electronics installed, the EOS reacts without any time delay.
EOS was the very first electronic overspeed governor introduced on the worldwide elevator market to enable a full range of different UCM situation for every installation need. EOS is compliant with requirements of Lift Directive and EN 81-20/ 50:2014
READ MORE

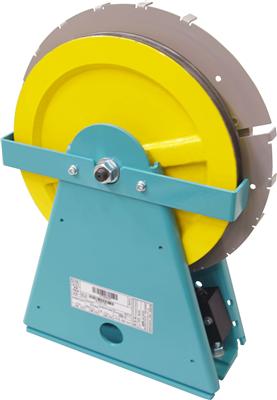

OVERSPEED GOVERNOR
OL25
The OL25 detects overspeed by its flyweight mechanism and engages the safety gear on the entire circumference of brake mechanism.
Simple mechanical design and remote control makes it the perfect choice not only for machine room but also for machine roomless applications.
Simple mechanical design and remote control makes it the perfect choice not only for machine room but also for machine roomless applications.
READ MORE

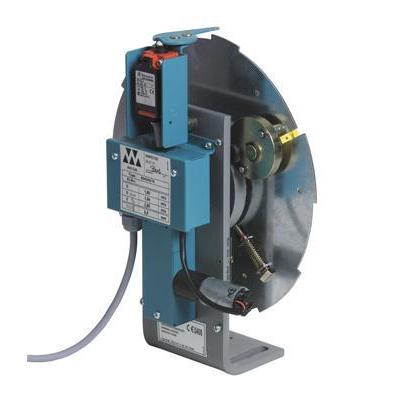

Medium speed and rise governor
OL35 / E / M
The OL35 detects overspeed by its flyweight mechanism and engages the safety gear on the entire circumference of brake mechanism.
This brake mechanism is pre-adjusted and limits the brake-force to protect the synchronization of the safety gear from excessive stress to the linkage.
READ MORE
Overspeed Governor
OL35-NA, OL35E-NA
- Engagement of the safety gear in down direction
- Overspeed contact operated in up and down direction
- Outline dimensions do not change over whole speed range
- Tripping possible at any point along perimeter of governor pulley
- Guaranteed minimum rope pull through force 500N
- Pull through force created by inbuilt friction brake exerting brake torque to governor pulley
- Suitable for conventional elevators with machine room but also for MRL-elevators
- Wide range of options available as remote control, base plates, tension weights, providing maximum flexibility
- Meets code requirements of ASME A17.1
READ MORE

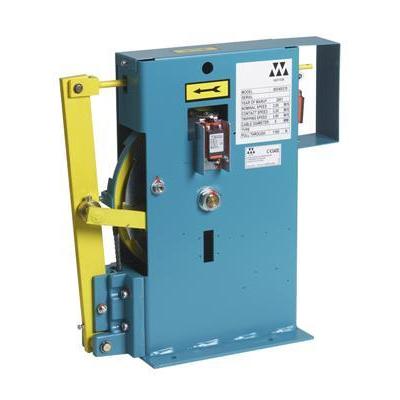

For high speed and high rise applications
OL100 / OL120
- Engagement of the safety gear in down direction
- Overspeed contact operated in up and down direction
- Outline dimensions do not change over whole speed range
- Tripping possible at any point along perimeter of governor pulley
- Pull through force created by jaw type rope brake
- Pull through force continuously adjustable between 1.100N to 2.100N
- Suitable for conventional elevators with machine room but also for MRL-elevators
- Wide range of options like base plates, tension weights are available, providing maximum flexibility
- Component certified according to directive 95/16/EC (Lifts)
- Meets code requirements of EN81 and ASME A17.1; also available with Russian and Korean Type Examination certificates
READ MORE

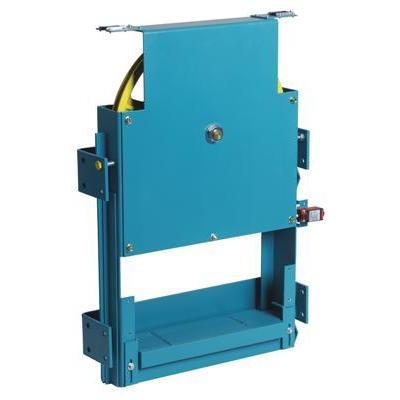

Tension weights
Wittur offers a complete range of tension weights that can be coupled with its overspeed governors.
READ MORE

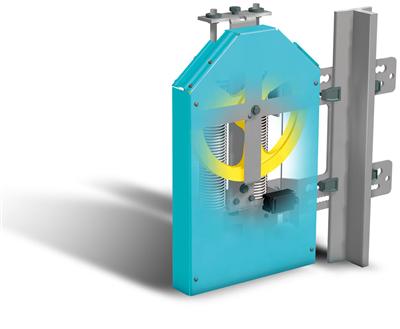

Wittur Compact tension Weight
CTW
Narrow design and less weight of device makes the CTW the perfect choice for tight space requirements in elevator pits.
READ MORE
