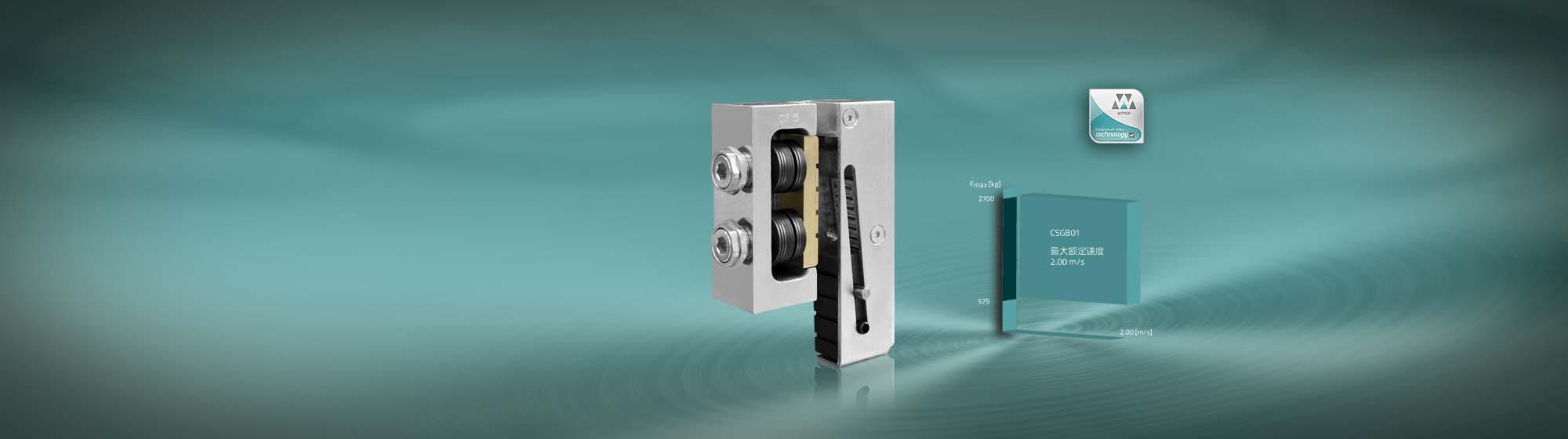

PROGRESSIVE TYPE SAFETY GEAR

CSGB-01C

CSGB-01C is a progressive type safety gear, built with a combination of disk springs and braking elements, which are activated by a movable tripping wedge.

PROGRESSIVE TYPE SAFETY GEAR

CSGB-01C

Down-direction only
Integration in vertical/horizontal frame beams available on request
High safety ratio with brake system in pair
Complete traceability of the production of main components from raw material to final
product with coding system stamped to each unit to enhance safety standard
Less harmful on the guide rail
Low wear rate of the tripping wedge
Easy operation, maintenance-free
Wide application range of guide rail (Machined guide type Oiled/ Dry)
Very high safety factor which exceed GB7588 and EN81-1/2/20/50 rules
Less release force
100% tested and checked at factory

Machined guide type	mass to be gripped (P+Q) Fmax	max. nominal speed V	max. governor tripping speed Vmax
Oiled	575-2700 (GB 7588) 1000-2700 (CE)	2.00	2.62
Dry	575-2700 (GB 7588) 1000-2700 (CE)	2.00	2.62
