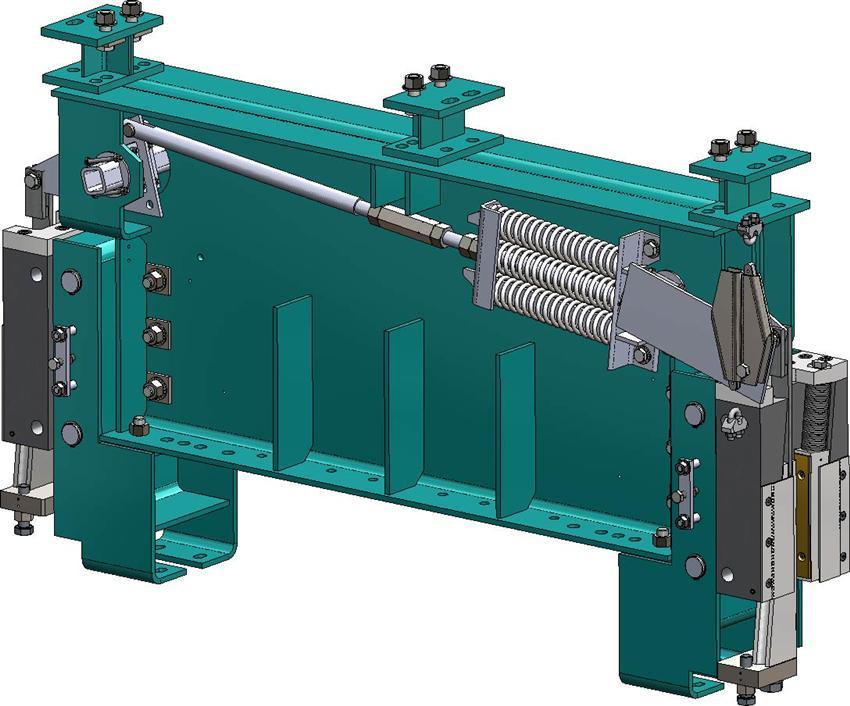

Since 1977 Wittur supplies the lift industry with versatile and high-quality doors.Unidirectional progressive safety gear for counterweight frame application
WCWSG 04/10
- Safety gear acting in downward direction
- Innovative and patented system: progressive braking power is generated by expanding the C-profiled safety gear main body, which is acting as a C-type spring
- Lightweight design: no additional spring elements required
- Compact unit including synchronization for counterweights
- Comfortable floating suspension ensuring simple and accurate alignment in relation to guide rail
- Easy adjustment for guide rail size and shape (movable safety gear blocks)
- Whole load range split up into steps so that no additional adjustments needed within one load step
- Integration in vertical/horizontal frame beams available on request
- Wide range of options available as safety gear housing, synchronization linkage, governor rope fixing or safety switch
Technical Features
| TYPE |
WCWSG04
|
WCWSG10
|
|
Max. nominal speed
|
v = 6,00 m/s
|
v = 8,00 m/s
|
|
Max. tripping speed
|
Vmax = 7,54 m/s
|
Vmax = 10,50 m/s
|
|
Applicable widths of rail head (type: machined/not lubricated)
|
|
|
|
- Simplex
|
k = 16 mm / 19 mm
|
k = 16 mm / 19 mm
|
|
- Duplex
|
k = 19 mm
|
k = 19 mm
|
|
Min. width of guide rail running surface
|
n = 30 mm
|
n = 30 mm
|
|
Max. mass to be gripped (P+Q):
|
|
|
|
- Simplex
|
Fmax = 1500 - 5000 kg
|
Fmax = 1500 - 5000 kg
|
|
- Duplex
|
Fmax = 9500 kg
|
Fmax = 9500 kg
|
|
Approved according to
|
European Lift Directive 95/16/EC
|
European Lift Directive 95/16/EC
|
|
Applicable standards
|
European Standard EN81
|
European Standard EN81
|
Subject to change without notice
