Since 1977 Wittur supplies the lift industry with versatile and high-quality doors.
Since 1977 Wittur has been providing the lift industry with versatile and high-quality doors. More than 30 years later Wittur is the leading company in the lift doors segment, with state-of-the-art technical solutions and unparalleled product range. Regardless of whatever your lift requires - a round door with panoramic panels rather than a straight or a folding one - Wittur can supply the best solution for your needs.
Research for innovative solutions and rigid control of product quality are key features of Wittur Safeties.
Wittur offers a wide range of car and counterweight frames. Modularly conceived, these components are very flexible in terms of rated load, height and width. The wide range of accessories includes safety gears, suspension pulleys, compensation chain and travelling cable hangers, allowing configurations suitable for different shaft layouts, lift designs and rated speeds. Wittur can also supply special frames for tailored projects.
Research for innovative solutions and rigid product quality control are key features of Wittur Safeties.
According to EN81-1/2 A3 and EN81-21 A1 (new lifts in existing buildings), new lifts installed after January 1st 2012 must be equipped with a system to prevent a car moving away from the floor with the landing door not in the locked position and the car door not in the closed position.
Since 1977 Wittur supplies the lift industry with versatile and high-quality doors..jpg)
Since 1977 Wittur supplies the lift industry with versatile and high-quality doors.
Since 1977 Wittur supplies the lift industry with versatile and high-quality doors.EN81-58 Norms
E Class Fire resistant Doors
The fire resistant lift landing doors are the most diffused in Europe and in the world.
Their essential feature is to satisfy the fire resistance requirements of the fireproof rules for the buildings.
In 2003, after the introduction of the new norms EN81-58, in Europe it was found a meeting point on the type of tests to be applied to the prototypes of landing door.
This has allowed to eliminate the differences in specifications of doors determined by local fire authorities, which are generally different from country to country.
Three classes of resistance are available:
- Class "E" (fire resistant doors)
- Class "EW" (fire resistant doors with limited irradiation)
- Class "EI" (fire-cutting doors)
Compared to the old tests, the fire resistant doors class "E" have the following features:
- Sheet 15/10 thickness instead of 18/10
- Possible execution without thermo-expanding gaskets
- Possible execution without top and rabbet side labyrinth
Furthermore, Hydra and Pegasus doors in fire resistant execution class "E" may be certified anti-vandal according to European standards EN81-71: 2005.
Executions
Fire resistant doors "E" have a wide range of executions:
- Panels and frames antirust painted or antirust painted and covered
- Panels and frames in full stainless steel execution
- Coverings in stainless steel, bronze, aluminium, copper, plasticized sheet
- Welded or demountable execution
- Installation flush with the shaft wall or in niche obtained in the wall
- Possibility to use the gap covering profile (calfeutrement)
- Installation with frames partially or completely concealed behind the shaft wall or with visible frames
- Side frames width variable from 50 to 750 mm
- Top frames width variable from 50 to 500 mm
- Frame depth variable from 30 to 100 mm
- Sill support in standard or type Berlin execution
- Aluminium or stainless steel or iron sill variant
- Plastic or bronze or iron rollers
- Frames covered in the rear side (on demand)
- Displacement of emergency opening device on the panel
Further norms
Click here to explore the Wittur wide fire resistance certificates of the following countries:
- United Kingdom
- Austria
- Belgiium
- Croatia
- France
- Germany
- Hungary
- Italy
- Netherlands
- Norway
- Romania
- Russia
- Singapore
- Spain
- Sweden
- Switzerland
Gallery
Contact
Martin Tang,
Key account manager for KONE
Lucifer Li,
Key account manager for Schindler
Jeff Bian,
Key account manager for OTIS
Contact
Image gallery
-

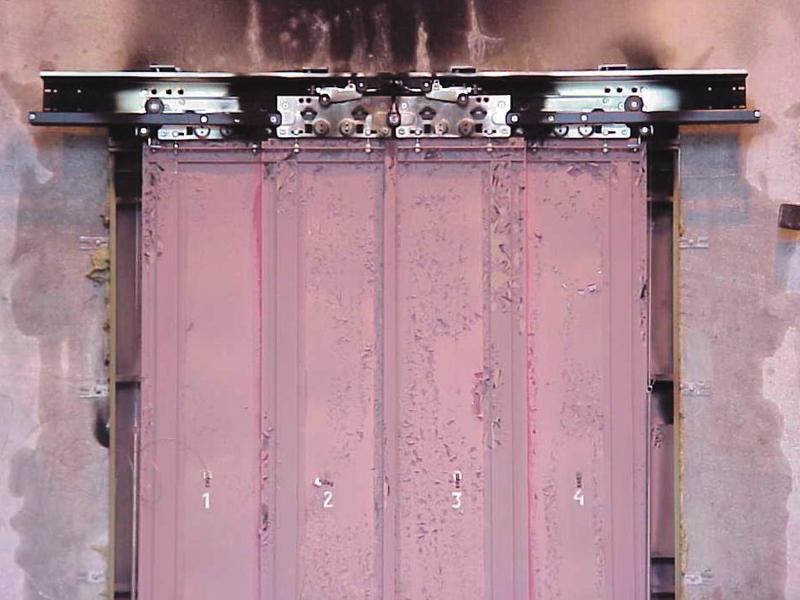

Fire resistant door - Norms EN81-58 class "E"
-

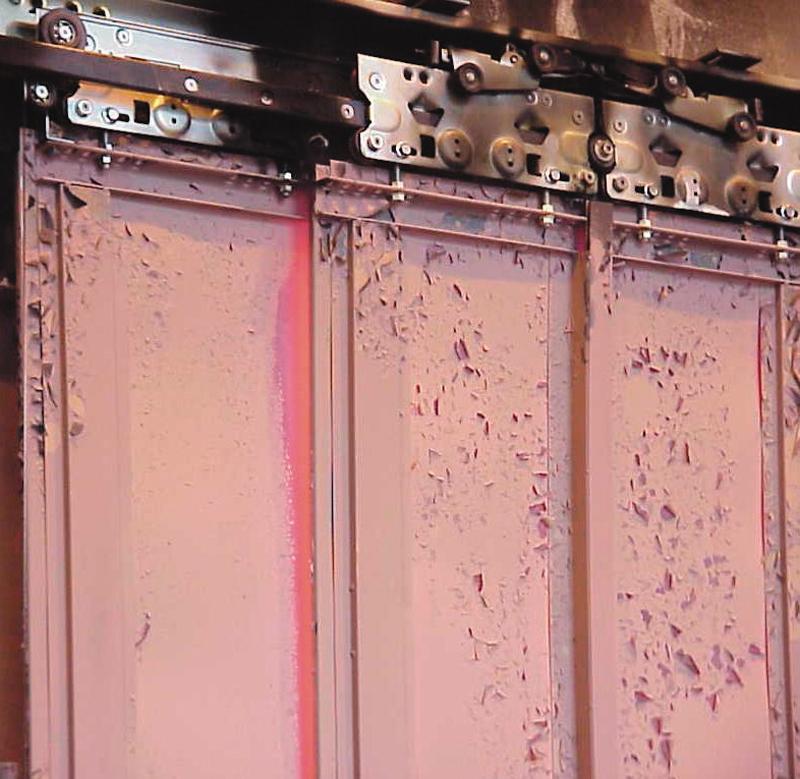

Fire resistant door - Norms EN81-58 class "E"
