Unidirectional progressive safety gear

Unidirectional progressive safety gear

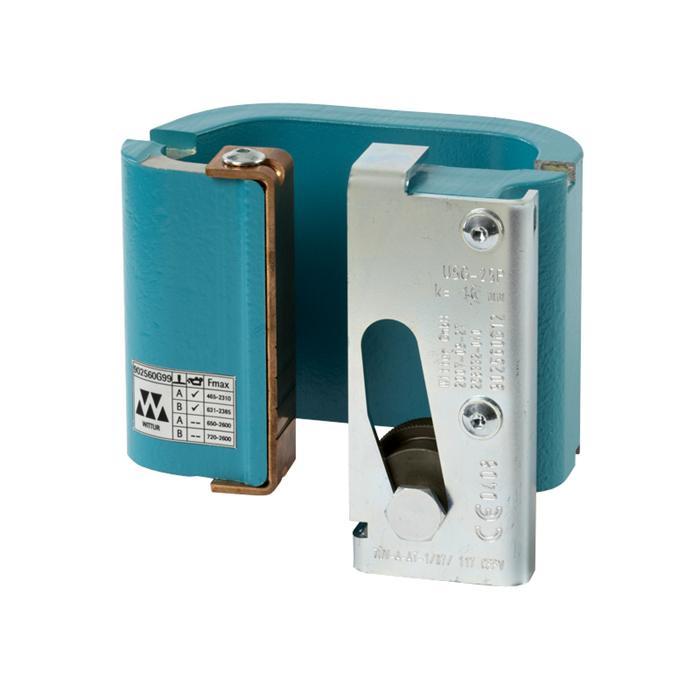

USG-25P

Safety gear acting in downward direction
Innovative and patented system: progressive braking power is generated by expanding the C-profiled safety gear main body, which is acting as a C-type spring
Lightweight design: no additional spring elements required
Comfortable floating suspension ensuring simple and accurate alignment in relation to guide rail
Easy adjustment for guide rail size and shape (movable safety gear blocks)
Whole load range split up into steps so that no additional adjustments needed within one load step
Standard fixing via separate housing below car frame
Integration in vertical/horizontal frame beams available on request
Wide range of options available as safety gear housing, synchronization linkage, governor rope fixing or safety switch

Technical features

Max. nominal speed	v = 2,00 m/s
Max. overspeed governor tripping speed	vmax= 2,63 m/s
Mass to be gripped (P+Q)	(P+Q) = 465 - 2600 kg
Max. allowed tripping force of the overspeed governor	1000N
Applicable width hof guide rail head	k= 8-16 mm
Min. width of guide running surface	n = 22 mm
Min. height of guide rail profile	h = 62 mm
Guide rail manufacturing condition	Drawn or machined
Surface condition of guide rail	Dry or Oiled
Approved according to	European Lift Directive 95/16/EC
Applicable standards	European Standard EN81
