Since 1977 Wittur supplies the lift industry with versatile and high-quality doors.
Since 1977 Wittur has been providing the lift industry with versatile and high-quality doors. More than 30 years later Wittur is the leading company in the lift doors segment, with state-of-the-art technical solutions and unparalleled product range. Regardless of whatever your lift requires - a round door with panoramic panels rather than a straight or a folding one - Wittur can supply the best solution for your needs.
Research for innovative solutions and rigid control of product quality are key features of Wittur Safeties.
Wittur offers a wide range of car and counterweight frames. Modularly conceived, these components are very flexible in terms of rated load, height and width. The wide range of accessories includes safety gears, suspension pulleys, compensation chain and travelling cable hangers, allowing configurations suitable for different shaft layouts, lift designs and rated speeds. Wittur can also supply special frames for tailored projects.
Research for innovative solutions and rigid product quality control are key features of Wittur Safeties.
According to EN81-1/2 A3 and EN81-21 A1 (new lifts in existing buildings), new lifts installed after January 1st 2012 must be equipped with a system to prevent a car moving away from the floor with the landing door not in the locked position and the car door not in the closed position.
Since 1977 Wittur supplies the lift industry with versatile and high-quality doors..jpg)
Since 1977 Wittur supplies the lift industry with versatile and high-quality doors.
Since 1977 Wittur supplies the lift industry with versatile and high-quality doors.Load Weighing Device for modernization

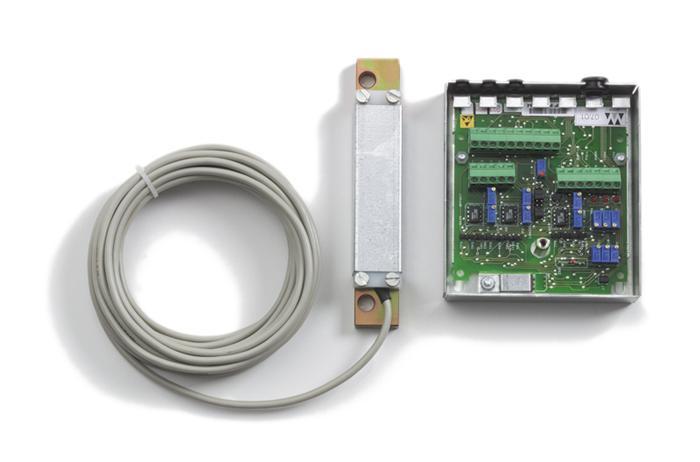

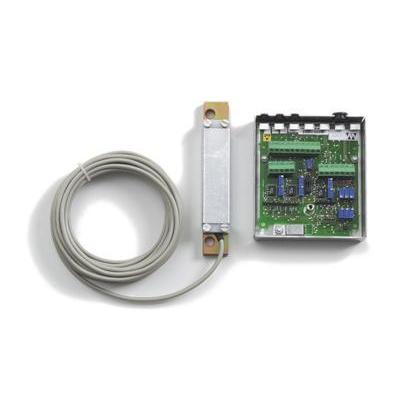

WLWD-M
WLWM measures the load in the car.
WLWM is installed on the car frame top beam, and therefore is a perfect solution for modernization.
- Universal system, designed for modernization
- The normal supply voltage is 24 VDC
- The outputs are either 24V open collector switching (empty, full load, over load) or current outputs (from 0 to 20 mA) proportional to measured load
- By using an additional board it is possible to supply the electronic with 110/230 VAC The switching outputs (empty, full load, over load) are relay contacts in this case
- Small mounting dimensions
- Wide range of applications, because independent from load
- Protection class IP20 and IP54
