Since 1977 Wittur supplies the lift industry with versatile and high-quality doors.Modular system WCF

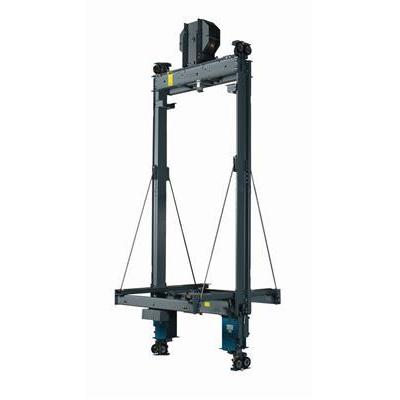

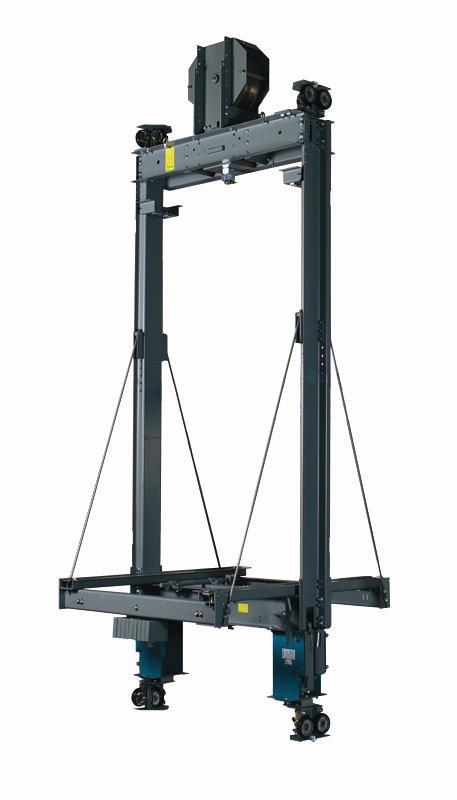

WCF - Electric car slings
- Product compliant with EN81 specifications
- Car frame width (DBG) as well as frame height can be chosen freely (in mm steps) within the technical limits
- Modular structure (single componentslike guide shoe, safety gear, ... selectable to the requirements)
- Available with progressive safety gear SGB01, SGB02, SGB03, SGB05
- Suitable for rail head width from 8 to 32 mm
- Suspension 1:1 or 2:1
- Car fully isolated for excellent ride comfort
- Easy installation
- Compact shipping dimension
Technical Features
| Model | Max. nominal load Q (kg) | Max. all up load G (kg) | Max. nominal speed V (m/s) |
| WCF 06 | 630 | 1600 | 2,5 |
| WCF10 | 1000 | 3000 | 6,0 |
| WCF16 | 1600 | 5000 | 6,0 |
| WCF25 | 2500 | 8000 | 6,0 |
| WCF35 | 3500 | 12000 | 6,0 |
