Hydra landing door

Hydra is the Wittur multifunctional door designed for maximum application flexibility.The wide variety of executions can be used with any kind of application, from residential buildings up to office buildings and hotels.

Flexible and reliable

Hydra landing door

Hydra is the Wittur multifunctional door designed for maximum application flexibility.

The wide variety of executions can be used with any kind of application, from residential buildings up to office buildings and hotels.

Advantages:

Flexible and reliable door
Wide variety of configurations and executions
Complete range of finishes
Possibility to satisfy every single application with an high degree of personalization
The landing door Hydra is combined with Hydra Plus operator, Pegasus Plus operator (medium-high traffic), Eco Piuma and Hydra 3000 Plus operator (for medium-low traffic)

Executions

Standard landing door: complete automatic landing door, including hanger complying with EN81, panels and frames in prime finish RAL 7032, standard aluminium sill, toe-guard 300 mm, fixing brackets.

Landing door with special frames (angular frame and tubular frame).

Fire resistant landing door (according to EN81-58 norms):

Glass panels door

Glass-framed panels door

Fire-resistant landing door (further norms):

Landing door according to DIN 18091norms
Fire-resistant landing door
Fire-resistant glass-framed panel door
Fire-cutting landing door

Special execution

Explosionproof
Waterproof IP54

Ship doors

Landing door according to EN81-72 norms (firefighters)

Landing door according to EN81-71:2005 norms (vandal-resistant certification)

Panels and frames finishings

Prime finish painted sheet (RAL 7032)
Stainless Steel
Anodized aluminium
Coloured aluminium
Prepainted aluminium
Extruded aluminium
Plasticized sheet
Plastic laminate
Hammered paint
RAL smooth painting

How to discriminate a genuine Wittur Hydra landing door 800x2000 Ty11 from a fake product

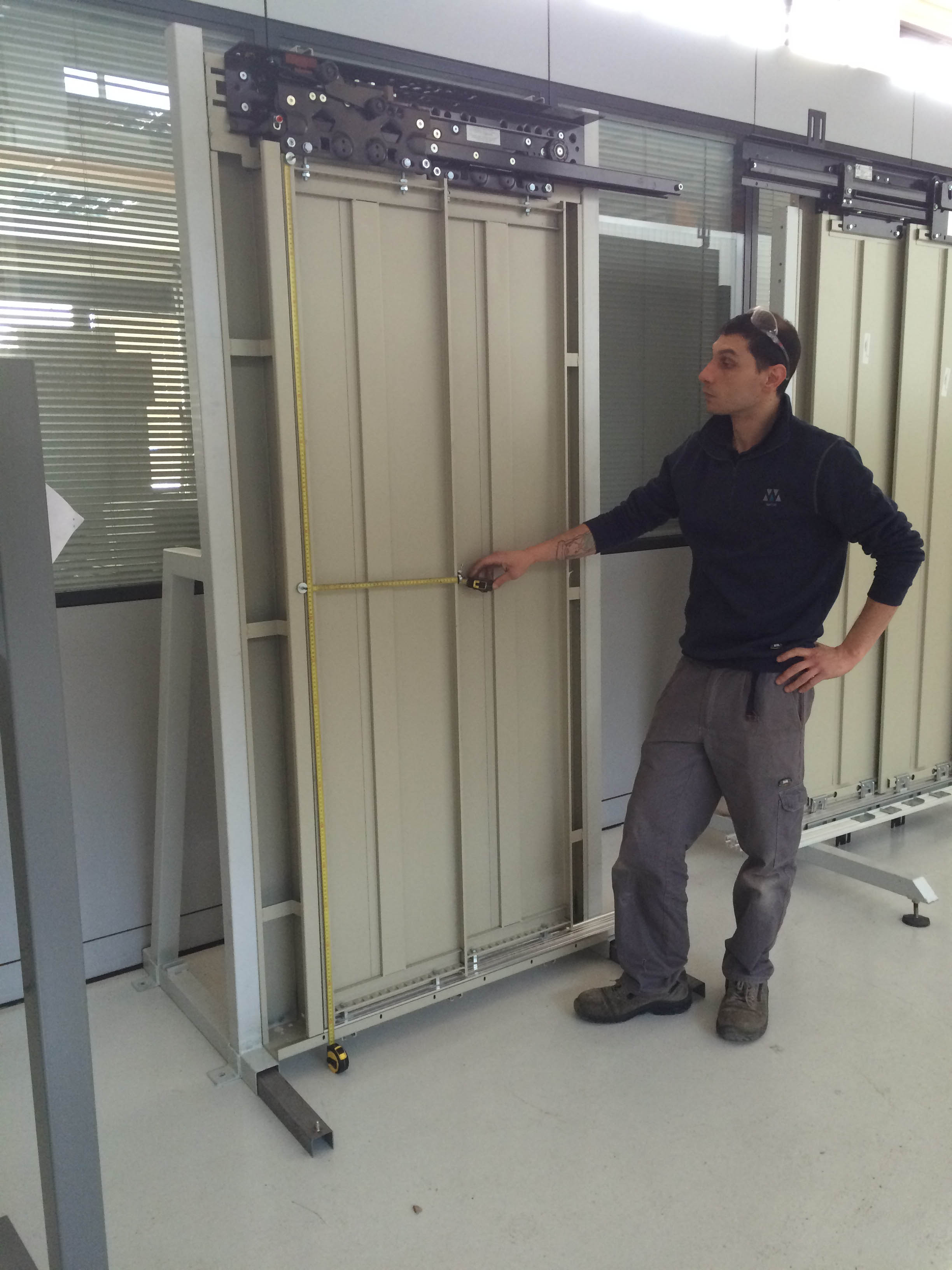

Check 1: Door panlels dimension control

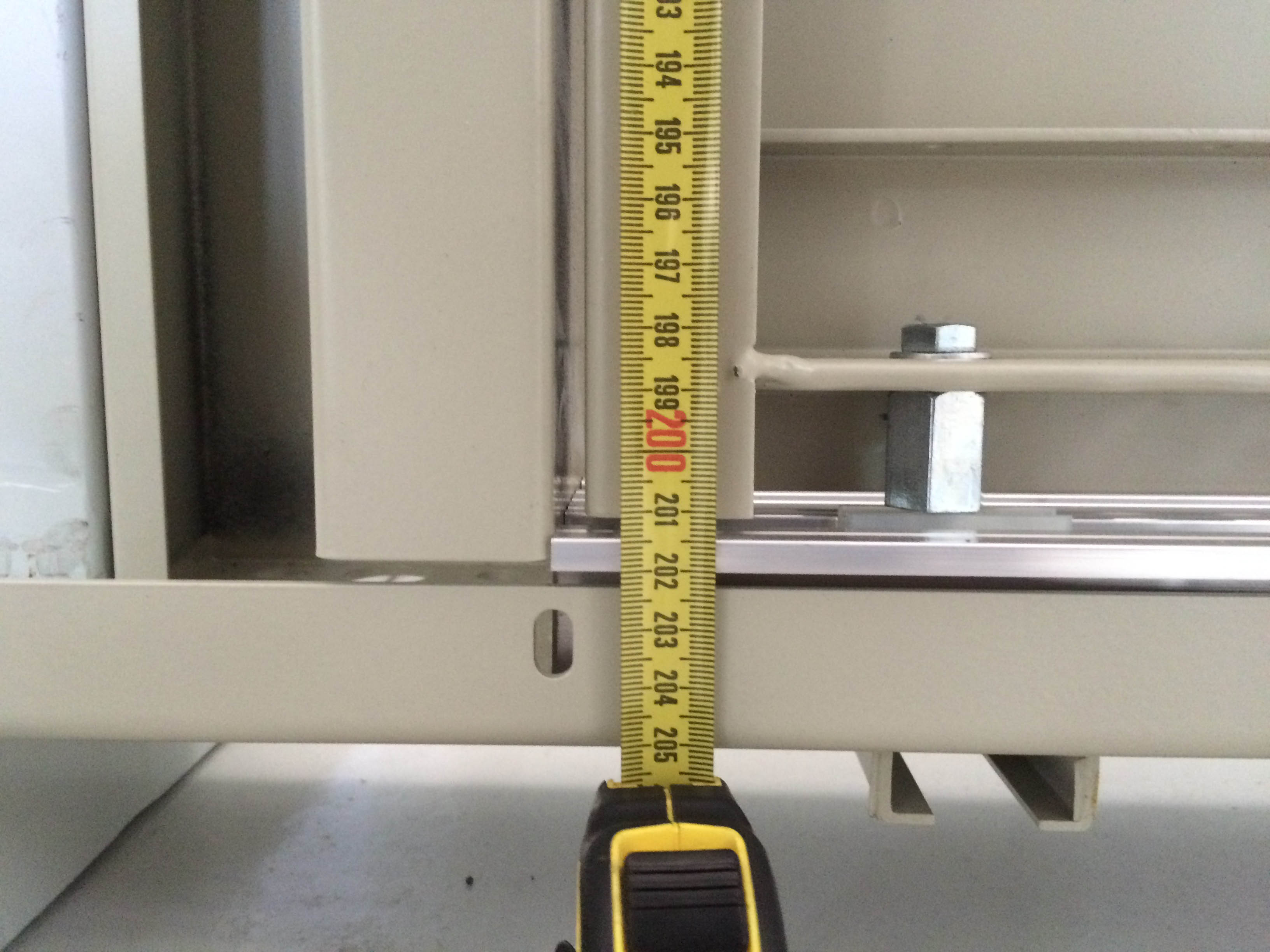

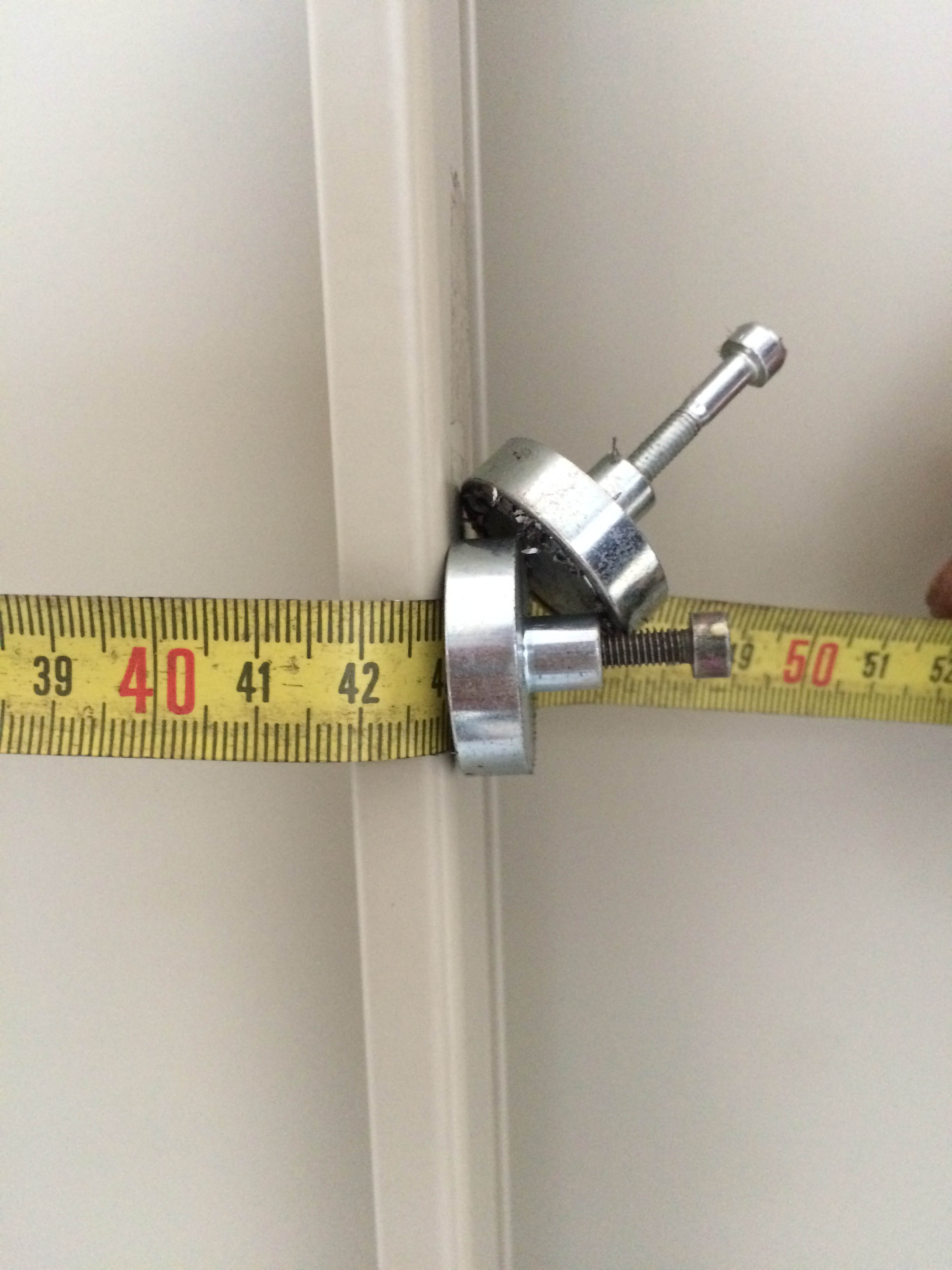

Each panel of a genuine Wittur Hydra 800x2000 mm ty 11 measures 425 mm width x 2012 mm height

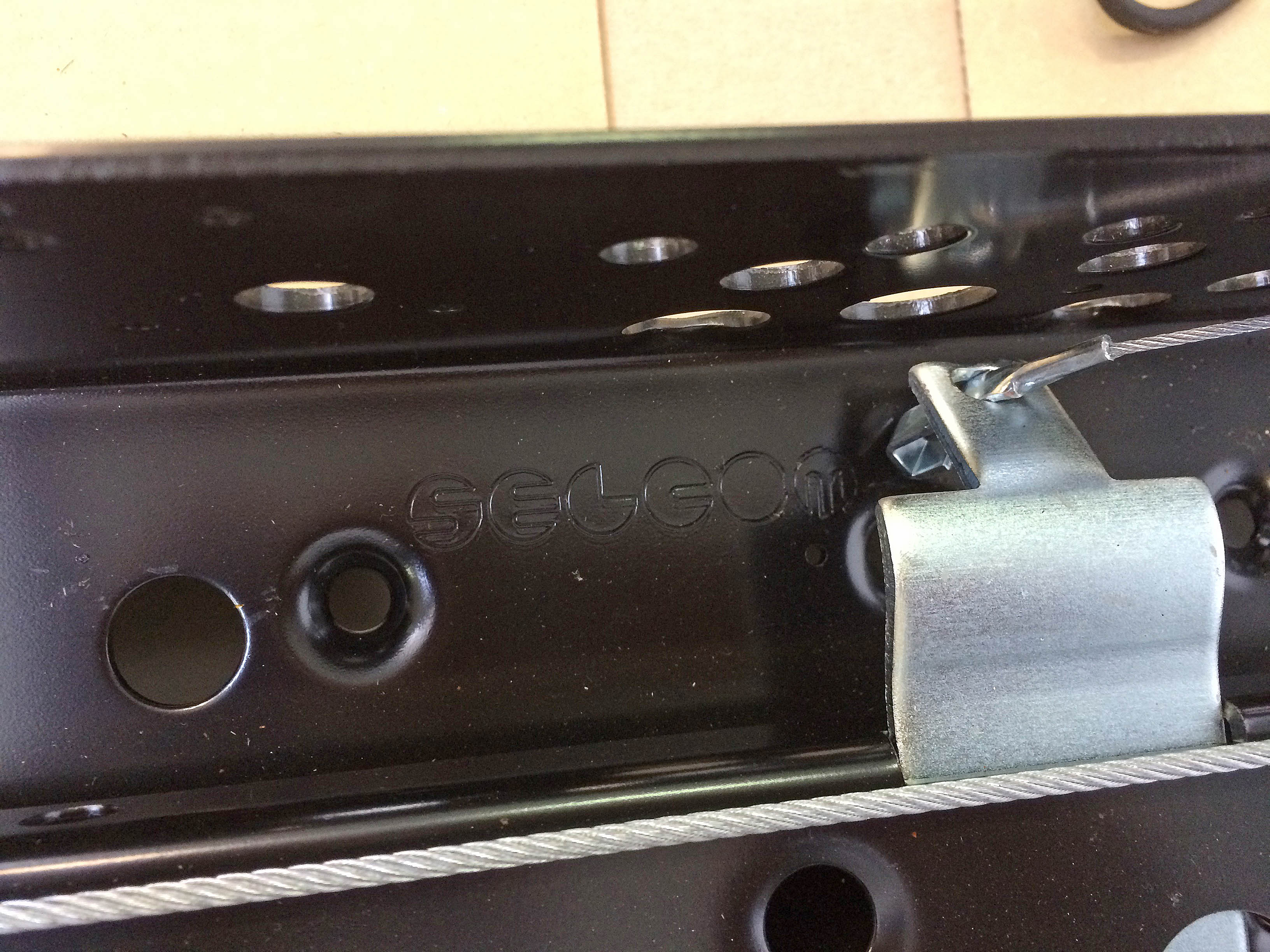

Check 2: SELCOM logo on support plate

Each genuine Wittur Hdyra mechanism features SELCOM logo in the middle area

Check 3: SELCOM logo on panel reinforcement

Each genuine Wittur Hdyra panel features SELCOM logo on the reinforcement

In case you find different features in the door you receive, please contact your local Wittur contact.

Configurations

Code	Drive position	Series	Door Type	Illustration	Clear opening min. (mm)	Clear opening max. (mm)	Clear height min. (mm)	Clear height max. (mm)
01/C		3201	01/C		500	1800	1900	3500
11/L		3201	11/L		500	1800	1900	3500
11/R		3201	11/R		500	1800	1900	3500
31/L		3201	31/L		600	2100	1900	3500
31/R		3201	31/R		600	2100	1900	3500
41/C		3201	41/C		1200	3200	1900	3500
43/R		3201	43/R		600	1150	1900	3500
61/C		3201	61/C		1500	3200	1900	3500
65/R		3201	65/R		900	1700	1900	3500
71/L		3201	71/L		500	1400	1900	3500
71/R		3201	71/R		500	1400	1900	3500
