Gearless synchronous traction machines

WSG-09

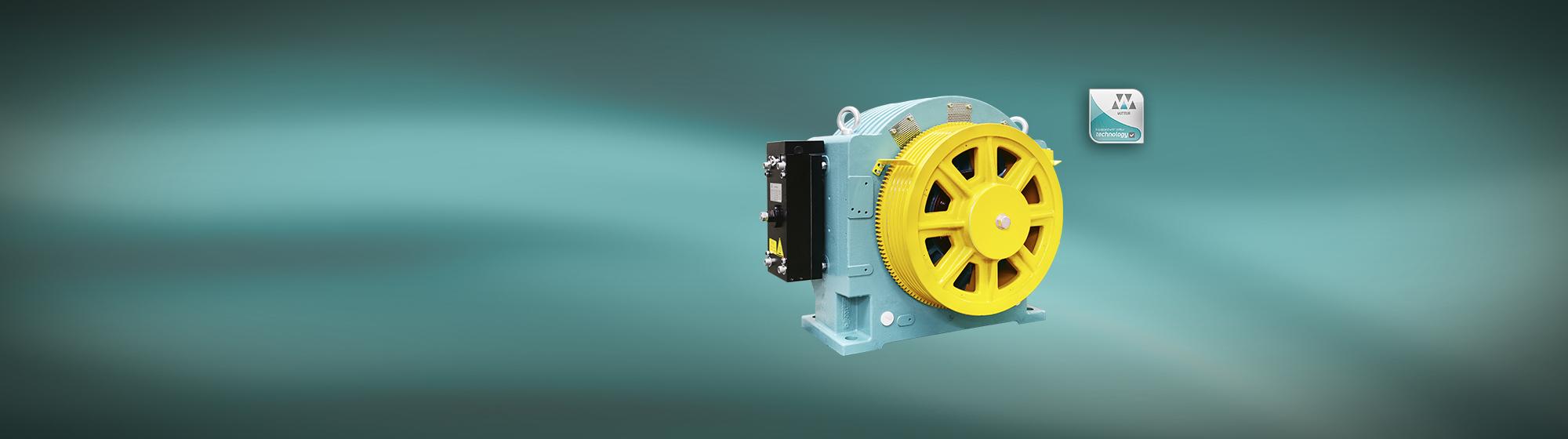

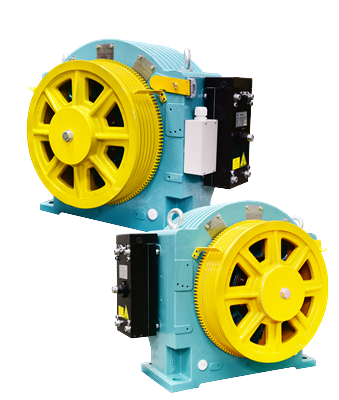

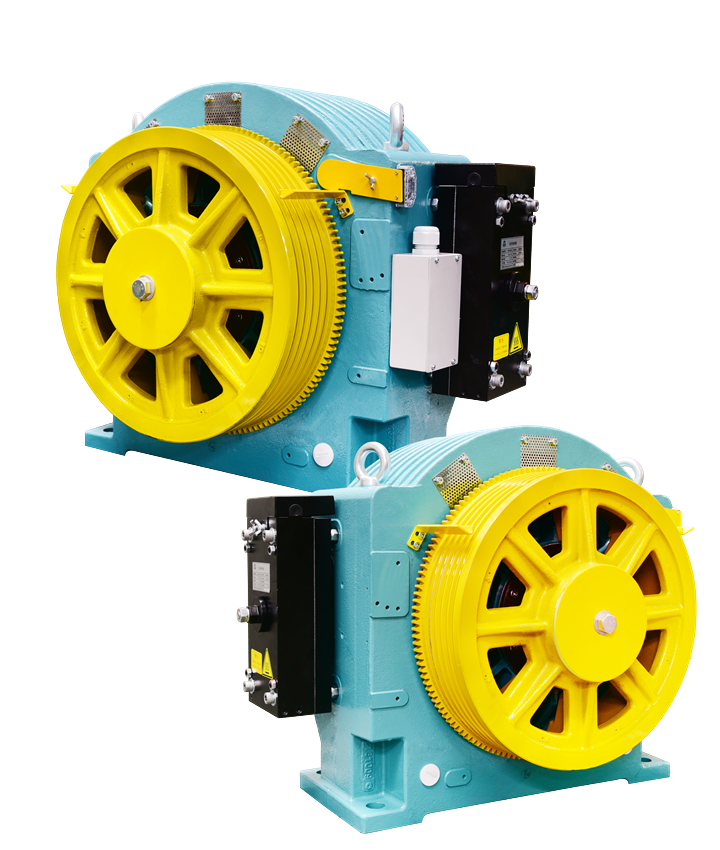

Wittur WSG-09 is a gearless synchronous traction machine, ideal for use without a machine room.

Gearless synchronous traction machines

WSG-09

Special housing design provides stable and high structural rigidity. Design is verified FEM and physical mechanical test.
Designed by outer rotor. Possible to generate bigger torque with low noise and vibration. Provides comfortable ride.
Solid construction for permissible shaft load Fs at the traction sheave up to 35kN
Safety brake system with electro-magnetical release, provides min. 2×950Nm
CTE test approved according to GB7588 and TSG T7007
Groove profiles according to lift system
Perfect rated motor, use of high - performance permanent magnet, degree of protection IP40, insulation class 155℃ (F), temperature control
Motor with 2 times overload capacity ; max. travelling height up to 120m
EC type-examination certificate according to EN 81-20/50, can be used for UCM solution
Inverter compatible measuring device, rigid coupling or intergrated. (e.g. ECN 1313; ERN 1387; TS5213N2503; EI53C9.25-2048-SA5N2T)
Variable options regarding voltage, speed, torque, braking torque and traction sheave parameters
The braker passed 2 million times braking. After the test, its performance is still in specification. Safety is guaranteed.

Content of supply

Gearless synchronous external rotor drive with:
Traction sheave
Braking system
Measuring and feedback system (encoder)
Mechancial evacuation system (option)
Manual release device for brake (option)
Remotely controlled bowden cable for brake (option)
Connection cable for encoder (option)
All technical documents necessary for approval and detail operation manual
