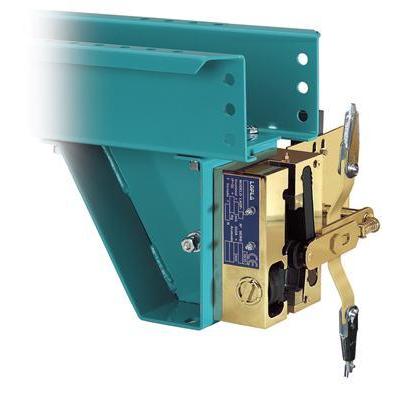

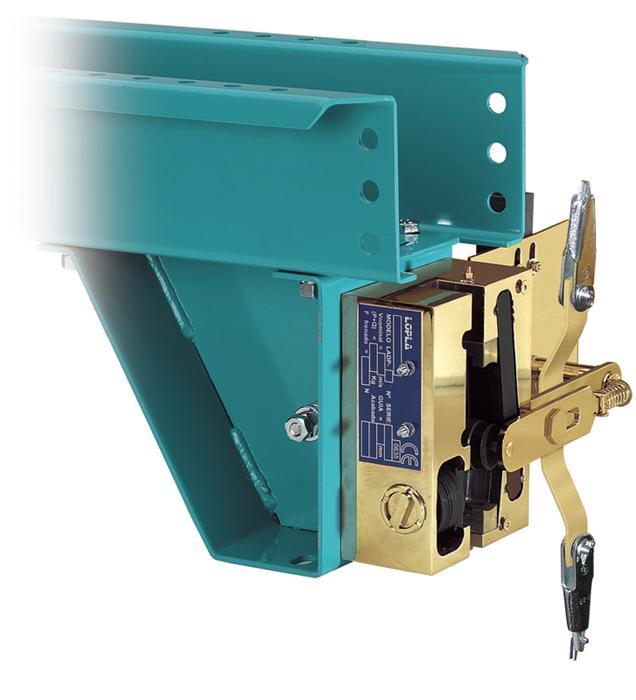

Bi-directional progressive safety gear

Bi-directional progressive safety gear

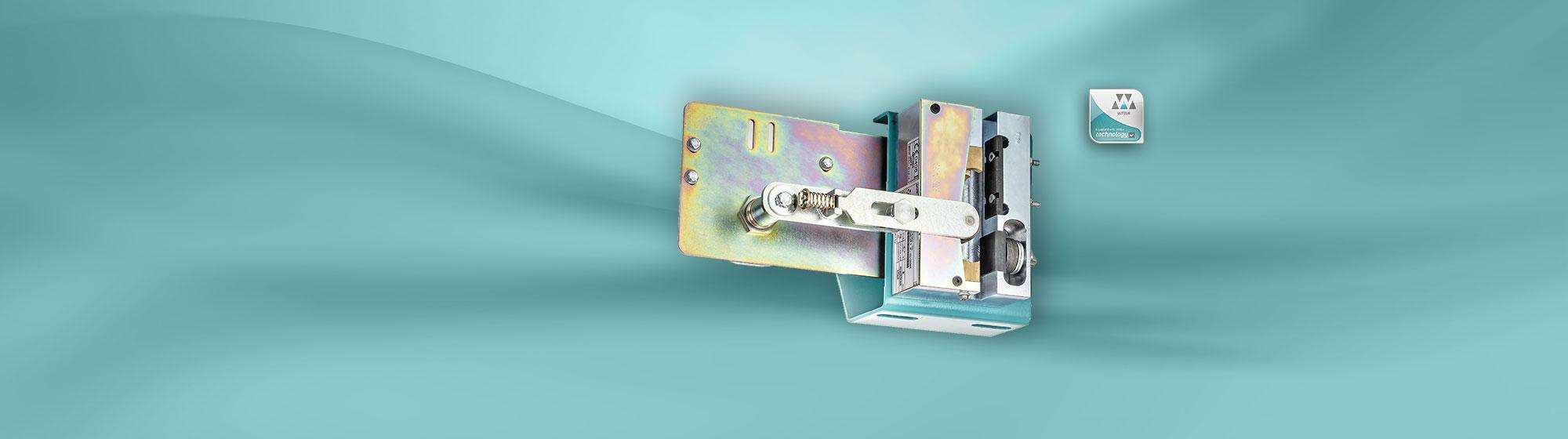

LADP

Safety gear acting in both upward and downward directions
Upwards braking power is exerted through compression of adjustable disc springs stack
Downward progressive brake force is generated by deflection of adjustable plate springs
Easy adjustment for guide rail size and shape (movable safety gear blocks)
Flexible delivery content including several options to meet wide range of applications

Technical features

Product code	v [m/s]	vmax [m/s]	drawn	machined	oiled	dry	Fmax (P+Q) [kg]	Q [kg]	Braking force [n]	k [mm]	n [mm]
LADP-9	≤1,3	≤1,5	X		X		717-1862	225 - 675	7400-13000	8 9 10	≥ 25
LADP-9	≤1,88	≤2,16		X	X		1098-2650	375 -1200	9700-19000	8 9 10	≥ 25
LADP-14	≤1,3	≤1,5	X		X		717-1862	225 - 675	7400-13000	12 14 15 16	≥ 30
LADP-14	≤1,88	≤2,16		X	X		1098-2650	375 -1200	9700-19000	12 14 15 16	≥ 30
LADP-16	≤1,3	≤1,5	X		X		1179-2819	350 -1350	12500-26000	12 14 15 16	≥ 32
	≤1,3	≤1,5	X			X	1141-4191	350 -2000	11500-33500
	≤1,88	≤2,16		X	X		1299-3933	450 -2000	15300-36000
	≤1,88	≤2,16		X		X	173 -4641	630 -2500	16000-45000
