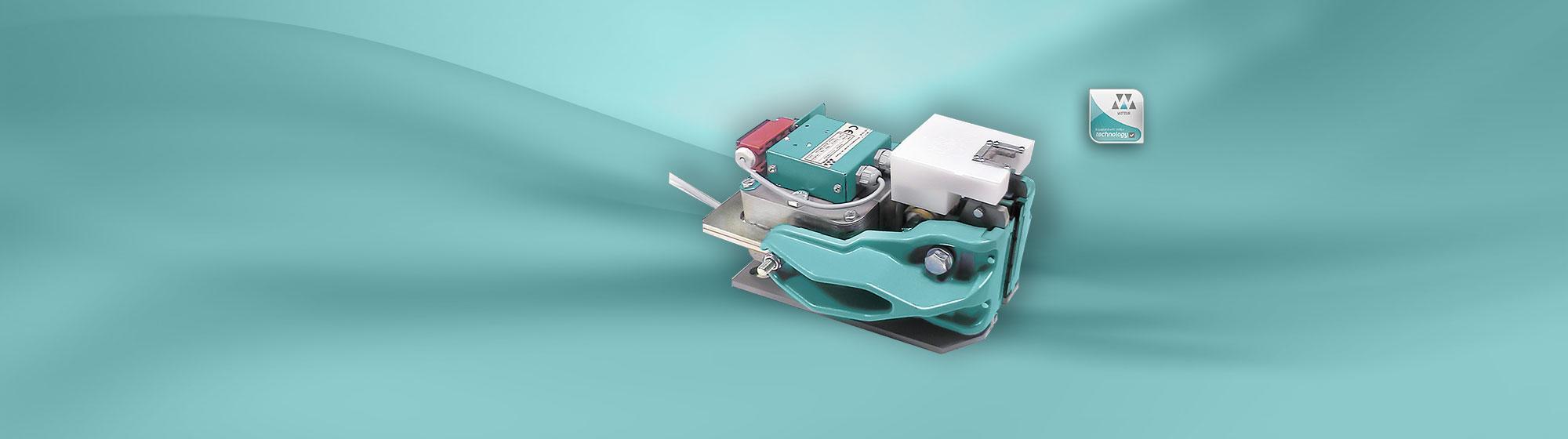

- Compliant with Lift Directive 95/16/EC and EN 81-80
- EBRA20 is acting in upward direction on car guide rails
- Ascending car overspeed protection
- Braking force is generated by two spring-loaded brake shoes, which are kept open via electromagnetic coil
- Placed on upper cross beam of car frame structure
- Released by signal of overspeed governor contact
- 3 standard types of adapter plates for fixing to car frame structure available: easy and fast installation
- Acting also as sliding shoe on car frame
- Perfect solution for modernization: covers wide range of requirements
Technical features
|
Max. nominal speed
|
v = 2,0 m/s
|
|
Q =
|
240...2000 kg
|
|
Max. nominal load:
|
|
|
1 brake
|
1000 kg
|
|
2 brakes
|
2000 kg
|
|
Applicable width of guide rail head (oiled)
|
k = 7...19 mm
|
|
Min. width of guide rail running surface
|
n = 29 mm (k=7-8)
|
|
" " " "
|
n = 30 mm (k=11-13)
|
|
" " " "
|
n = 31 mm (k=14-16)
|
|
" " " "
|
n = 32 mm (k=19)
|
|
Max. guide shoe forces during load
|
4000 N
|
|
Max. guide shoe forces during normal run
|
2000 N
|
|
Weight per EBRA20
|
30 kg
|
|
Power supply
|
230 VAC +15%
|
|
Battery for emergency power supply
|
24 V; 2,1 Ah
|
|
Power usage (continuous use)
|
25 W per Coil
|
Subject to change without notice
