大尺寸强劲设计

Taurus is beyond all doubt the strongest landing door of Wittur production range. Ideal for really heavy traffic solutions, such as large-dimensions and heavy-duty goods lifts, it is designed especially for industy. The rigid construction of this door allows unlimited openings and a long-lasting performance.

大尺寸强劲设计

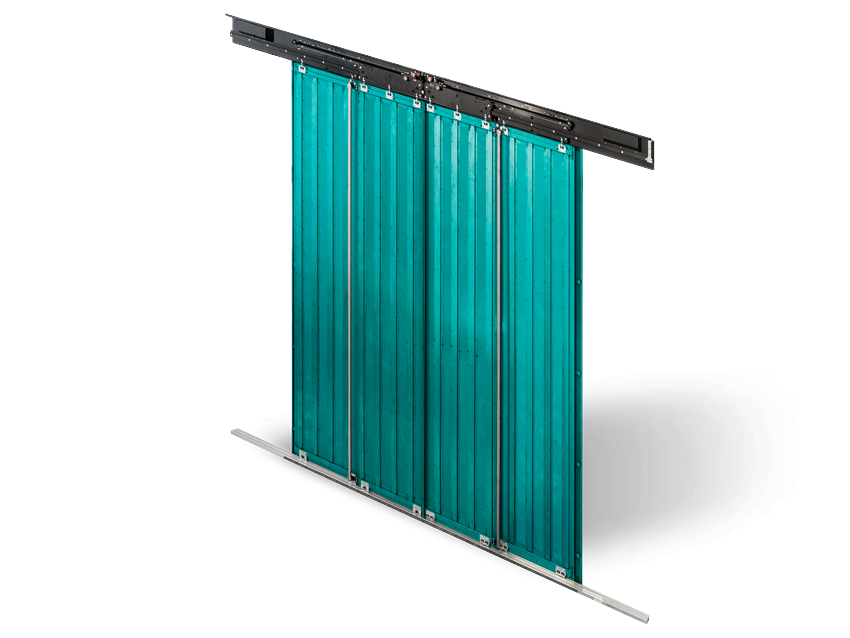

Taurus 层门

Taurus 无疑是 Wittur 产品系列中最强大的层门。真正重载解决方案的理想选择，如大尺寸和重载货梯等。专门设计用于工业用途。

该门坚硬的结构支持无限次开关门和持久的优良性能。

优点：

门板总重量高达 2000 kg
两扇至六扇中分门
两扇至三扇侧开门
开门净宽最小为 800 mm，最大可达 5000 mm
采用 Taurus 门机

规格

标准层门：全自动层门，包括符合 EN81 标准的挂件，门板及门套涂以高档底漆 RAL 7032，铁地坎，300 mm护脚板，固定支架。

防火层门：

防火层门

特殊规格：

防爆
防护等级 IP54

层门符合 EN81-72 规范（防火）

门板及门套装潢

喷粉门板（RAL 7032）
不锈钢
阳极氧化铝
彩铝
预喷漆铝
挤压铝
增塑板
塑料叠合板
锤纹漆
RAL平滑上漆

配置

代码	Drive position	系列	门类型	图示	净开门宽最小 (mm)	净开门宽最大 (mm)	净开门高最小 (mm)	净开门高最大 (mm)
01/C		3201	01/C		800	3000	2000	5000
11/L		3201	11/L		900	3000	2000	5000
11/R		3201	11/R		900	3000	2000	5000
31/L		3201	31/L		1000	4000	2000	5000
31/R		3201	31/R		1000	4000	2000	5000
41/C		3201	41/C		1400	5000	2000	5000
61/C		3201	61/C		1800	5000	2000	5000
